A Comprehensive Guide to Lifting Shackle Types, Uses, and Safety Tips

Introduction

Lifting shackles are essential components in rigging, lifting, and towing operations across numerous industries. Their strength, reliability, and versatility make them indispensable when it comes to connecting equipment like hoists, slings, cranes, and chains. This guide will walk you through the main types of shackles, their specific uses, and key safety considerations to help you make informed and safe choices.

Understanding Shackles:

Shackles come in various forms, including D-shackles, bow shackles, and screw pin shackles. Each type serves specific purposes, and understanding their characteristics is essential for choosing the right shackle for a particular task.

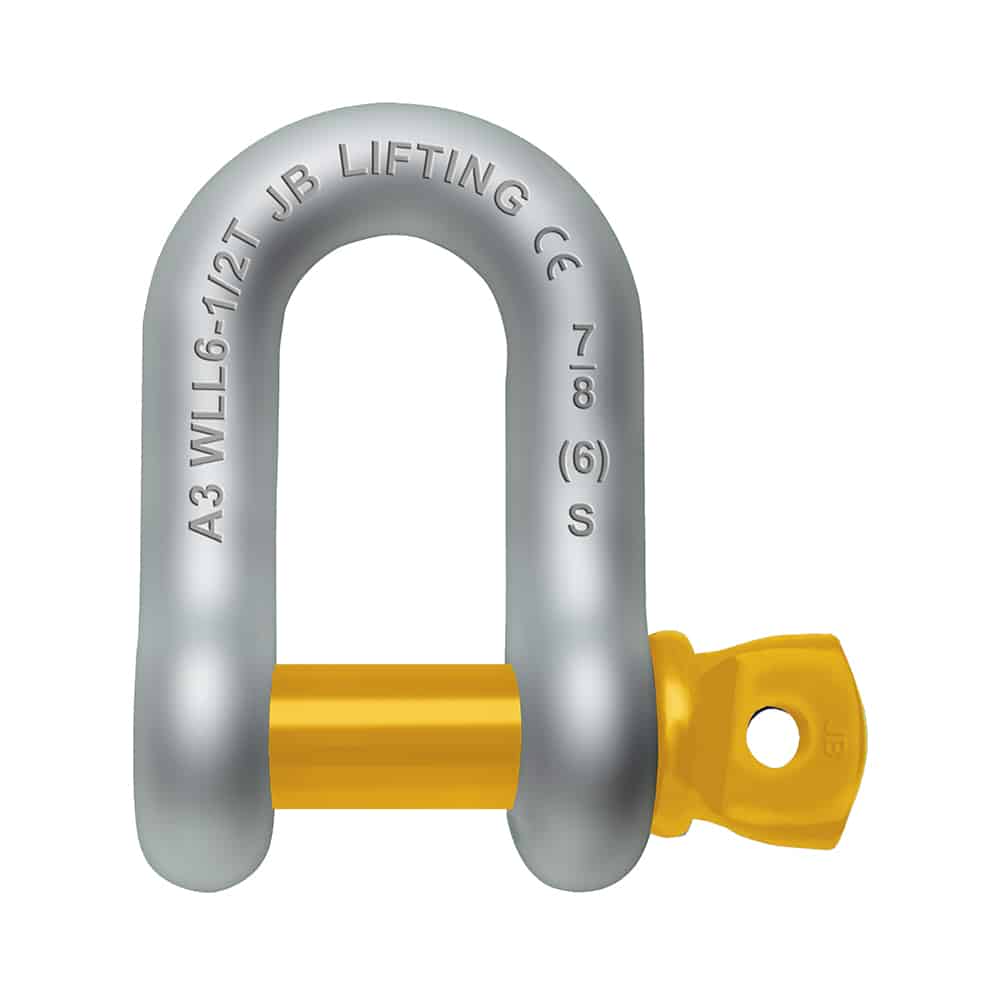

D-Shackles:

D-shaped shackles, or chain shackles, are widely used for lifting applications. Their design allows for easy connection and disconnection, making them suitable for various tasks.

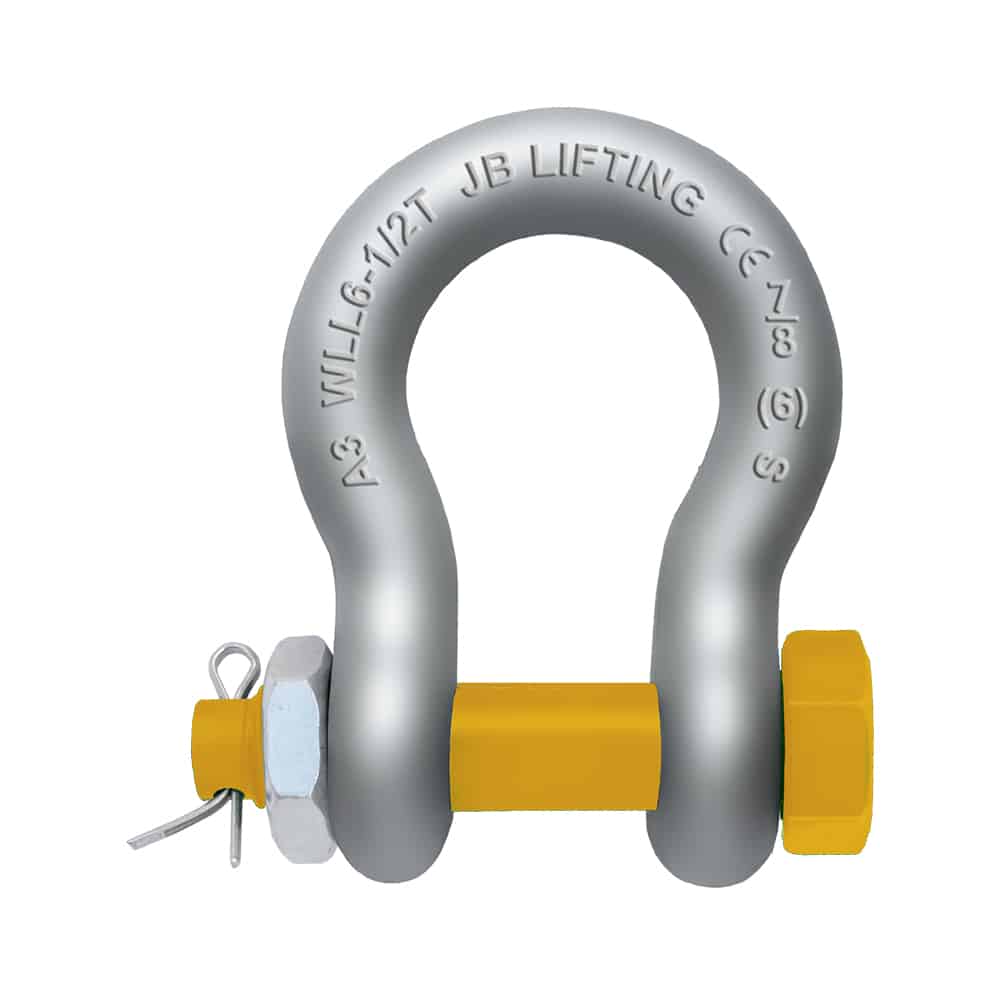

Bow Shackles:

With their more comprehensive, rounded shape, bow shackles are excellent for multi-dimensional loading. Their versatility makes them popular in towing, rigging, and lifting scenarios.

Screw Pin Shackles:

Screw pin shackles are user-friendly, with a threaded pin that can be easily unscrewed for quick attachment or detachment. They are commonly used in non-permanent applications.

Common Applications

Shackles are used across a broad spectrum of industries. Their applications include:

Marine and Offshore Operations
Shackles are used to secure anchor chains, perform deck rigging, and lift components on ships and oil rigs. Their corrosion-resistant finishes make them ideal for saltwater environments.

Lifting and Rigging
Shackles connect slings, hooks, and lifting devices to loads, enabling safe and effective material handling in factories, warehouses, and construction sites.

Towing and Off-Road Recovery
In automotive and off-road applications, shackles connect tow straps, winches, and recovery gear. Bow shackles are commonly used in these setups for their flexibility.

Essential Safety Tips

To maximize performance and ensure workplace safety, follow these crucial guidelines:

1. Regular Inspection

Inspect shackles for signs of deformation, corrosion, cracks, or wear. Even minor flaws can compromise integrity under load.

2. Proper Load Usage

Always operate within the Working Load Limit (WLL) specified by the manufacturer. Overloading is a leading cause of equipment failure.

3. Secure Connections

Ensure that pins are fully seated and tightened. Avoid using shackles where movement or vibration could cause unintentional loosening.

4. Use the Right Shackle

Choose a shackle designed for the specific job. For instance, D-shackles work best for straight-line pulling, while bow shackles are better for multi-leg sling arrangements.

5. Follow Standards and Certifications

Use shackles that comply with international safety standards such as BS EN 13889, ASTM A153, or ASME B30.26.

Conclusion:

Shackles are indispensable tools across various industries, offering reliability and strength in many applications. Understanding the different types of shackles and their uses and adhering to essential safety tips can unlock their full potential while ensuring a safe and efficient workplace. Remember these insights to elevate your understanding of shackles and optimize their performance in your operations.
