“Four Leg Chain Sling, Master Link Assembly Ring on Top and Legs ending in Shackle connected by Chain Connector / Hammer Lock / Coupling Link”. Safe and Secure offers high quality JB Lifting Grade 80 and Grade 100 Alloy Chain Slings (from 7mm to 32mm in diameter) and wide range of chain components and fittings as well.

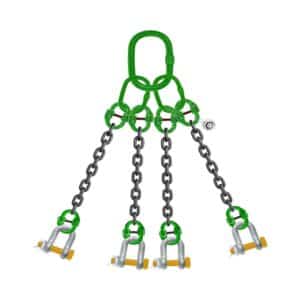

Four Leg Chain Sling With D-Shaped Shackle With Bolt Pin
Safe and Secure (SSTC) offers a Four Leg Chain Sling With D-Shaped Shackle With Bolt Pin JB Lifting components made from special quenched and tempered alloy steel, a guarantee for very high strength, low weight, high wear resistance, and long life. All Lifting components are uniformly marked with equivalent chain size, grade, manufacturer’s designation, and name for identification.
- Standard: EN818
- Material: Alloy Steel
- Grade: 80
- Safety Factor: 4:1
- Construction: Quenched & Tempered
- Proof Load: 2.5 time SWL
- Finish: Self Coloured
Key Features:
- Easy to assemble wherever needed.
- Higher Breaking Load than Polyester and Steel Wire Rope.
- Strong against Cutting and Abrasion.
- Resistant to chemical and ultraviolet (UV) radiation.
- Excellent Lifetime: Last longer than conventional Polyester and Steel Wire Rope.
- Working Temperature up to 200o C.
Specifications:-
| ItemCode(s) | DIAMETER OF CHAIN | CAPACITY AT MULTIPLE ANGLES | WEIGHT/MTR | Chain Weight | ||
| 0-45 Degree | 45-60 Degree | |||||
| mm | Inch | Ton | Ton | Kg/m | Kg | |
| SCA-FOSHKB-07 | 7 | 9/32 | 3.15 | 2.24 | 7.33 | 0.79 |
| SCA-FOSHKB-08 | 8 | 5/16 | 4.25 | 3 | 12.21 | 1.38 |
| SCA-FOSHKB-10 | 10 | 3/8 | 6.7 | 4.75 | 23.42 | 2.2 |
| SCA-FOSHKB-13 | 13 | 1/2 | 11.2 | 8 | 33.77 | 3.1 |
| SCA-FOSHKB-16 | 16 | 5/8 | 17 | 11.8 | 53.51 | 5.63 |
| SCA-FOSHKB-20 | 20 | 3/4 | 26.5 | 19 | 79.88 | 8.6 |
| SCA-FOSHKB-22 | 22 | 7/8 | 31.5 | 22.4 | 150.42 | 10.2 |
| SCA-FOSHKB-26 | 26 | 1 | 45 | 31.5 | 253.27 | 14.87 |
| SCA-FOSHKB-32 | 32 | 1-1/4 | 67 | 47.5 | 270.64 | 21 |
* Standard Lengths: 1,2,3,4,5,6,7,8,9,10,11,12 meter, whereas customizable Lengths are also available depending on customer requirements.
Please Contact Us for your inquiry!
Precautions & FAQs| Diameter (mm) | 7mm, 8mm, 10mm, 13mm, 16mm, 20mm, 22mm, 26mm, 32mm |
|---|---|
| Length (Meter) | 1 Meter, 2 Meter, 3 Meter, 4 Meter, 5 Meter, 6 Meter, 8 Meter, 10 Meter, 12 Meter |
