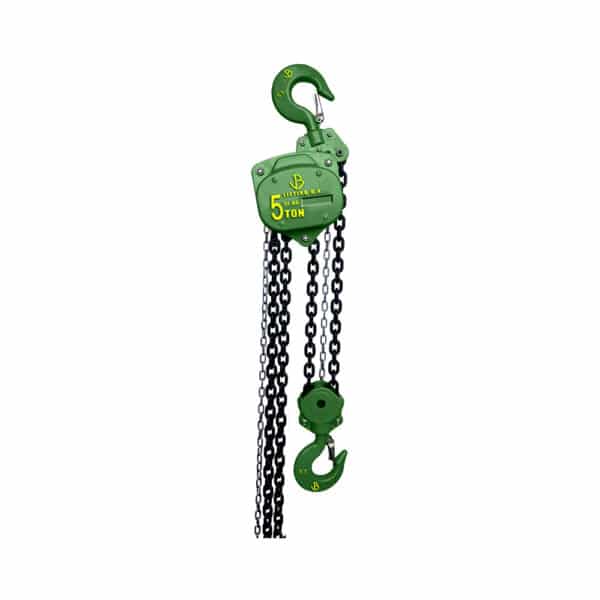

Manual-Hand Operated-Portable Chain Block Hoist Pulley

Manual-Hand Operated Chain Block Hoist Pulley

Discover premium-quality Chain Block (Chain Hoist​)​ designed for safe and efficient lifting operations. Whether you’re looking for a Manual Chain Hoist or advanced lifting solutions, JB Lifting offers durable and high-performing products tailored to your needs. Professionals across Saudi Arabia trust our range of Chain Blocks and Chain Hoists for their strength, reliability, and consistent performance in demanding environments.

⭐ Features of Manual Chain Hoist:

Meets and Exceeds: ANSI/ASME B30.16, BS EN 13157:2004
The Manual Chain Hoist is built for superior performance and safety across a wide range of lifting tasks. Moreover, Chain Hoist​ comes packed with features that enhance both efficiency and durability. As a result, this Chain Hoist delivers consistent, reliable operation even under the most demanding conditions. In addition, it meets strict industry standards, making it a trusted choice for professionals.

1. With a WLL ranging from 0.5 ton to 20 tons.
2. Additionally, Factor of Safety (FoS) – 4:1 ensures reliable operation.
3. Safe and reliable, requiring minimum maintenance during operations.
4. Furthermore, it boasts high efficiency with a small hand pull.
5. Moreover, it is lightweight and easy to handle, providing convenience.
6. In addition, it offers durability in service, withstanding demanding conditions.
7. Equipped with swivel 360° hooks with heavy-duty cast safety latches.
8. Also, it features an automatic double pawl brake for enhanced safety.
9. Tested to 150% of the Working Load Limit, ensuring safety under heavy loads.
10. The chain is of high tensile quality, providing reliable performance.
11. Finished with zinc-plated or hot-dip galvanized chain for corrosion resistance.
12. Strong bolts between side plates and housing cover enhance stability.
13. Precision-machined guide rollers ensure the smooth running of the load chain.
14. Additionally, high-quality bearings for the gearbox, side plates, and load chain sheave allow a long service life.
15. Moreover, the double pawls support a fail-safe brake mechanism for secure operations.
16. Additionally, the load sheave is equipped with a sealed roller bearing for smooth performance.
17. Furthermore, heat-treated steel side plates, gears, and shafts provide enhanced strength.
18. In addition, the hooks are quenched and tempered, made of high-tensile alloy steel for added strength.
19. Finally, the hoist has a powder-coated finish for extra protection.
20. JB Lifting Logo, CE, Serial/Identification ID number, and WLL/SWL are clearly shown on the tag.

⚙️ Chain Block Hoist Specifications:

Here are the detailed specifications for the Chain Block Hoist, covering key parameters such as lifting capacity, standard lift height, load chain dimensions, and overall hoist dimensions. These specifications help you choose the appropriate model for your application, ensuring reliable performance, safety, and compatibility with your lifting requirements in industrial and commercial environments.

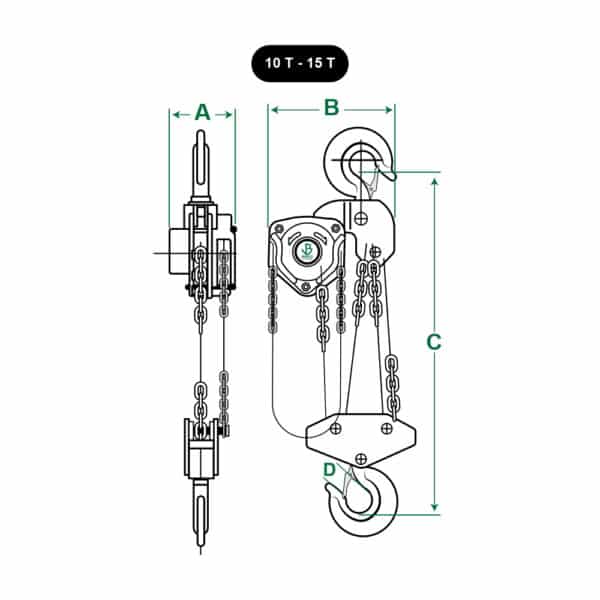

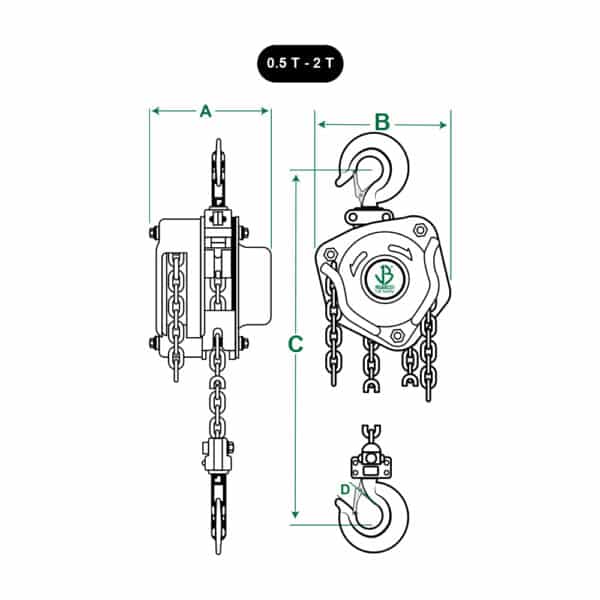

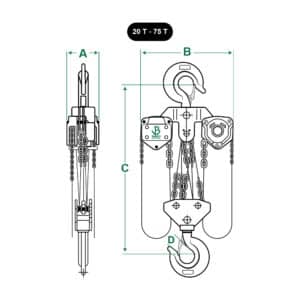

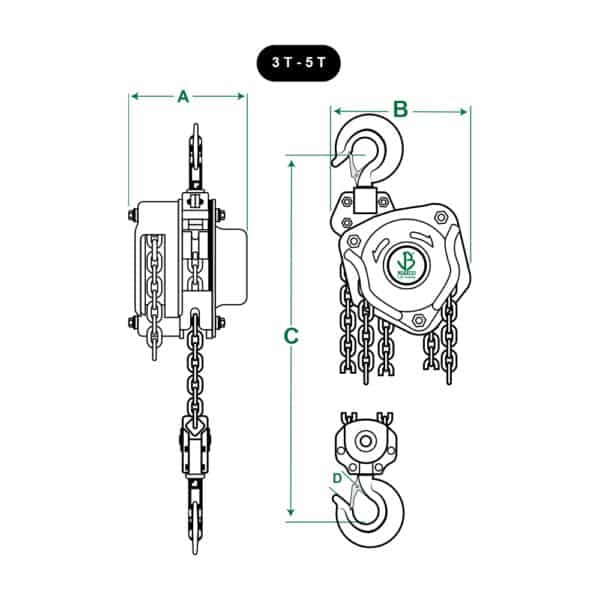

📐 Chain Block Hoist Data Table:

Below is the line data table of the Chain Block Hoist, offering a detailed view of its internal components and mechanical layout.

📝 NOTE:

* Standard Lengths: 3 and 6 meter.

* Whereas customizable Lengths are available depending on customer requirements in both meters and feet.

🔴 Need a custom chain length? Your Solution is Just a Message Away.

📦 Applications Of Chain Block:

The ​​​Manual Chain Hoist In Saudi Arabia is suitable for a wide range of lifting applications in industrial settings, including:

1. For instance, in construction sites, it is ideal for lifting and positioning heavy materials and equipment during construction projects.
2. Moreover, in warehouses and distribution centers, it is perfect for loading and unloading goods from trucks and storage areas.
3. In addition, in manufacturing facilities, therefore it is essential for handling and transporting heavy machinery and components along assembly lines.
4. Furthermore, in maintenance and repair workshops, it is suitable for lifting and servicing heavy equipment and vehicles.

🛠️ How to Use:

The Chain Hoist In Saudi Arabia is designed for efficient and secure lifting operations in industrial settings. By following these simple steps, you can ensure smooth controlled lifting and lowering with the hand operated chain block, enhancing both safety and performance during your tasks.

1. First, attach the chain block hoist pulley to a stable support point using the 360° swivel safety hooks. Make sure the hooks are fully engaged and securely locked in place.
2. Next, adjust the chain length to match the required lifting height. Position the load directly beneath the load sheave to ensure proper balance and safe lifting.
3. Then, turn the hand wheel to lift or lower the load. Maintain smooth and steady control during the operation to prevent sudden or unsafe movements.
4. After that, engage the automatic double pawl brake once the load reaches the desired height. This action holds the load securely and keeps it safely suspended.
5. Finally, lower the load completely once the task is finished. Store the chain block hoist pulley in a clean, dry, and designated storage area to protect it from damage and ensure long-term performance.

⚠️ Precautions:

To ensure safe and efficient operation, always follow these key precautions when using a chain block hoist pulley. Proper handling, regular inspection, and adherence to load limits are essential to prevent accidents and extend equipment life.

1. Never exceed the hoist’s Working Load Limit (WLL). Overloading can cause equipment failure, lead to accidents, or result in serious injury.
2. Inspect the load chain, hooks, safety latches, and braking system for signs of wear, damage, or corrosion before each use. Stop using the hoist immediately if you find any defects.
3. Engage both the top and bottom hooks fully, and center the load properly. Avoid side loading, as it can bend or break the hooks.
4. Allow only qualified and trained operators to use the chain block. And Improper use increases the risk of accidents and equipment damage.
5. Keep people clear of the load at all times. Never allow anyone to stand or work beneath a lifted or suspended load. Secure the load properly and check the surrounding area before operating the hoist.

❓ Frequently Asked Questions:

1. What are the uses of manual chain block hoist pulley ?
A manual chain block hoist pulley is used for lifting and lowering heavy loads by hand in industrial, construction, and warehouse environments.  Therefore it provides mechanical advantage, allowing users to lift loads with minimal effort.

2. What is the maximum load capacity of this chain block hoist?
The load capacity depends on the model, but manual chain block hoists are commonly available in capacities ranging from 0.5 ton to 5 tons. Also always check the product label or user manual for exact specifications.

3. Does this hoist require electricity or batteries?
No, this is a manually operated hoist. It works entirely by hand using a hand chain and does not require electricity or batteries, making it ideal for remote locations or areas without power.

4. Is it safe to use this hoist for overhead lifting?
Yes, when used properly and within its rated capacity, manual chain hoists are designed for safe overhead lifting. Always inspect the hoist before use and ensure it meets safety standards like CE or ANSI.

5. Can this hoist be used outdoors or in harsh environments?
Yes, many manual chain hoists are built with weather-resistant materials, but exposure to rain, dust, or corrosive environments can reduce lifespan. For outdoor use, choose a model with anti-corrosion coating and perform regular maintenance.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
