Hand Operated-Portable Chain Lever Block Ratchet-Hoists and Pulls

Portable Chain Lever Block Ratchet-Hoists and Pulls

The Manual Lever Hoist/Lever Block is a powerful and compact lifting tool designed for tough industrial applications. Built for precision and control, this Manual Lever Hoist​ allows users to lift, lower, and position heavy loads with ease. Its ratchet mechanism ensures smooth operation, making it a trusted chain lever ratchet type solution in workshops and job sites. Commonly used as a Lever Block In Saudi Arabia, it’s ideal for tight spaces where overhead lifting is required. Whether you’re working in construction or logistics, this reliable Lever Hoist In Saudi Arabia is engineered to deliver safe and efficient lifting every time.

⭐ Key Features Of Chain Lever Hoist Ratchet Type:

Meets and Exceeds: ANSI/ASME B30.21, BS EN 13157:2004

Our manual lever chain hoist offers exceptional strength, precision, and reliability for heavy-duty applications. Designed for optimal performance, the chain lever hoists feature advanced safety and durability, ensuring smooth and efficient operation in the most demanding environments.

1. Standards Compliance: Meets ANSI/ASME B30.21 and BS EN 13157:2004.
2. Capacity Range: 0.25 ton to 9 tons.
3. Safety Factor: 4:1; tested to 150% of WLL for safety assurance.
4. Durability: Rugged design with shock-resistant gear and brake covers.
5. Ease of Use: Lightweight, compact, and requires minimal hand pull for operation.
6. Hook Design: 360° swivel hooks with safety latches; quenched and tempered for overload resistance.
7. Chain Quality: Self-lubricating, anti-corrosion, rust-resistant load chain with high strength.
8. Smooth Operation: Precision-machined guide rollers and high-quality bearings.
9. Overload Protection: Torque controller mechanism and overwind prevention device.
10. Brake System: Rust-resistant, non-seizing braking system with extraordinary holding force.
11. Build Quality: Designed with robust bolted side plates and a reinforced housing, offering exceptional stability and mechanical strength.
12. Identification: Clearly marked with the JB Lifting logo, CE certification, serial ID, and WLL/SWL rating for traceability and regulatory compliance.

⚙️ Lever Block/Hoist Specifications:

Here are the complete technical specifications of the Manual Lever Hoist, covering essential details such as load capacity, chain dimensions, lifting height, and overall measurements. These specifications are designed to help you choose the right model for your application, ensuring optimal performance, safety, and compatibility with your lifting requirements

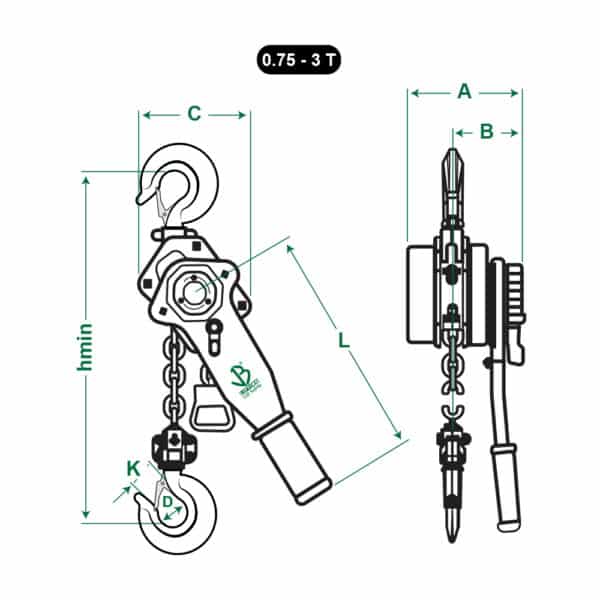

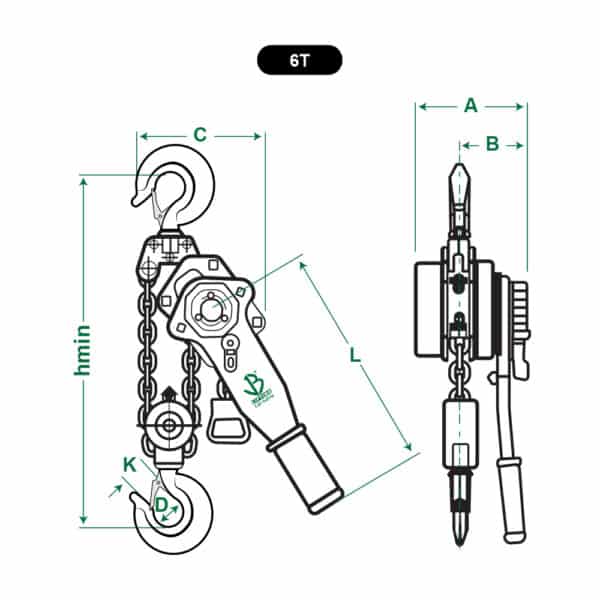

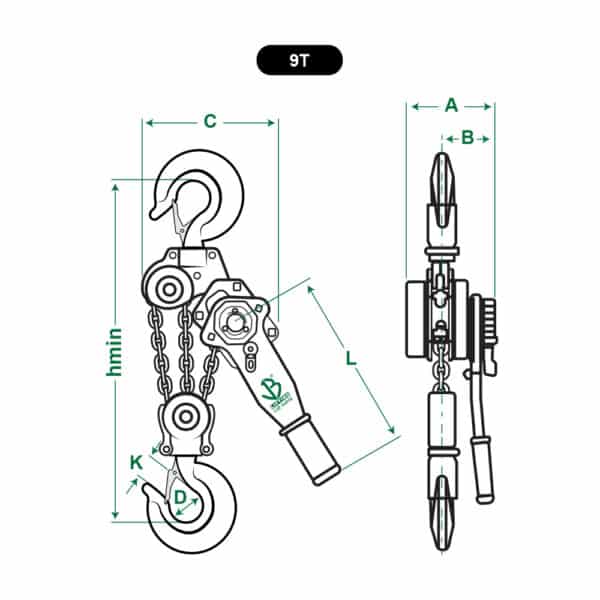

Lever Block Line Diagram:

Here is the diagram showcasing the detailed layout and critical dimensions of the Manual Lever Hoist.

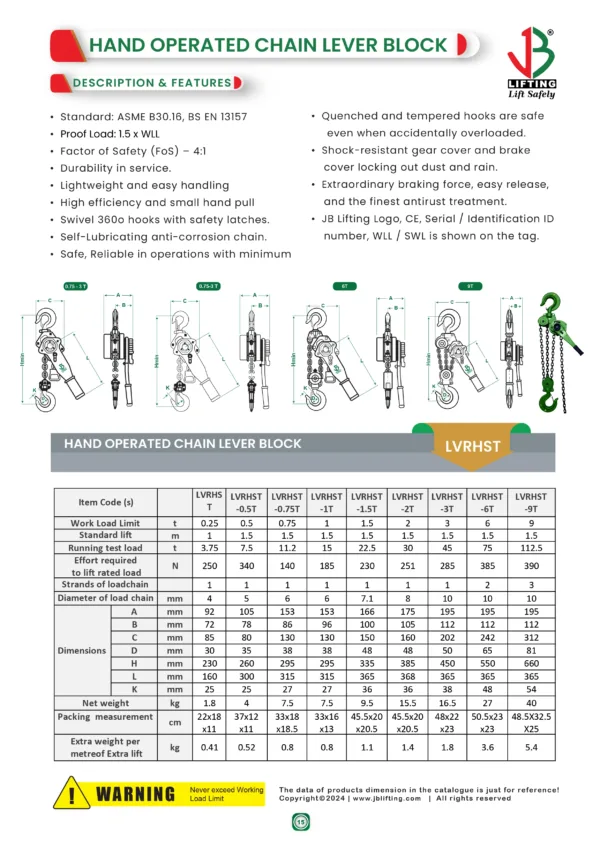

Lever Block Data Table:

Below is the comprehensive Lever Block Data Table, outlining the key performance metrics and dimensional details for each available model.

📝 Note:

* Standard Lengths: 1.5 and 3 meter.

* Whereas customizable Lengths are available depending on customer requirements in both meters and feet.

🔴 Need a custom chain length? Your Solution is Just a Message Away.

📦 Application:

The Manual Lever Hoist/Lever Block is suitable for a wide range of lifting and pulling applications in industrial settings, including:

1. Construction sites: Ideal for lifting and positioning heavy materials and equipment during construction projects.
2. Warehouses and distribution centers: Perfect for loading and unloading goods from trucks and storage areas.
3. Manufacturing facilities: Essential for handling and transporting heavy machinery and components along assembly lines.
4. Maintenance and repair workshops: Suitable for lifting and servicing heavy equipment and vehicles.

🛠️ How to Use:

The Manual Lever Hoist/Lever Block is designed for easy and safe lifting and pulling operations. By following these simple steps, you can ensure efficient performance while using Manual Lever Hoist for various industrial tasks:

1. Securely attach the Manual Lever Hoist to a stable and suitable anchorage point using the swivel 360° hooks with safety latches.
2. Next, adjust the lever handle to the desired position for lifting or pulling the load.
3. Then, operate the lever handle to raise or lower the load, ensuring smooth and controlled lifting or pulling.
4. Additionally, use the torque controller mechanism for precise control and efficient operation.
5. Afterwards, engage the brake mechanism for secure holding of the load at the desired height during lifting or pulling operations.
6. Finally, once finished, release the load gradually and lower it to the ground, ensuring safety and preventing accidents.

⚠️ Precautions:

To ensure safe and efficient operation of the Manual Lever Hoist, it is essential to follow proper usage guidelines and safety measures.

1. To ensure safety and maintain optimal performance, follow these essential precautions when operating the chain lever hoist in any industrial setting:
2. Always inspect before use – Check for visible damage, especially on the load chain, hooks, and brake mechanism.
3. First and foremost, do not exceed the Working Load Limit (WLL) – Lifting loads beyond the specified WLL can lead to equipment failure or serious accidents. Always verify the load capacity before operation.
4. Additionally, ensure proper anchoring – The hoist must be securely attached to a firm and stable anchorage point using the 360° swivel hooks with safety latches. This minimizes the risk of slippage or imbalance during lifting.
5. Moreover, avoid shock loading – Abruptly lifting or jerking the load can damage the internal components of the hoist and may result in loss of control or injury. Maintain smooth, steady movements at all times.
6. Never use a damaged or malfunctioning hoist – If any component is worn, rusted, or not functioning correctly, do not operate until it is repaired or replaced.

❓ Frequently Asked Questions:

Below are answers to common queries about the Portable Chain Lever Block Ratchet-Hoists to help users get the most from their lifting device:

1. What is a chain lever block (ratchet hoist)?
   A chain lever block is a manual lifting and pulling device used to lift, lower, or pull heavy loads. It operates with a ratcheting handle that moves the load chain incrementally, allowing controlled load movement in tight or confined spaces.
2. What are the typical applications for a lever hoist?
   It’s used in:Construction and riggingMaintenance and repair jobsUtility workLoad positioning in confined spacesHorizontal pulling or tensioning (e.g., fencing, cable work)
3. What capacities are available?
   Common lifting capacities range from 0.75 ton to 9 tons. Always select a model rated above your maximum expected load to ensure safe operation.
4. Can it be used for both lifting and pulling?
   Yes, lever hoists are versatile tools that support vertical lifting, horizontal pulling, and load tensioning, making them ideal for a wide range of manual handling tasks.
5. Is it safe for overhead lifting?
   Yes—when used according to the manufacturer’s guidelines and within its rated load capacity, it is safe for overhead lifting. Always inspect the hoist and load chain before use and follow proper safety protocols.

Still have questions or need a custom solution? Contact our team today — we’re ready to help.
