The Ultimate Guide to 2-Leg Wire Rope Bridle Sling with Omega Shackle Bolt Type in KSA
2-Leg Wire Rope Bridle Sling with Omega Shackle Bolt Type in KSA: In high-stakes industries such as construction, oil & gas, marine operations, logistics, and manufacturing, ensuring the safety and efficiency of lifting operations is not optional—it’s mandatory. Choosing the right rigging equipment can prevent accidents, improve productivity, and extend the life of both your tools and machinery.
Among the many lifting assemblies available, the 2-leg wire rope bridle sling with Omega shackle bolt type stands out as a top choice for professionals across Saudi Arabia. Known for its strength, versatility, and enhanced safety, this configuration is ideal for lifting heavy, unbalanced, or oversized loads.
This guide, brought to you by SSTC (Safe and Secure Trading Company), walks you through everything you need to know—from structure and benefits to application and safety tips.
Table of contents

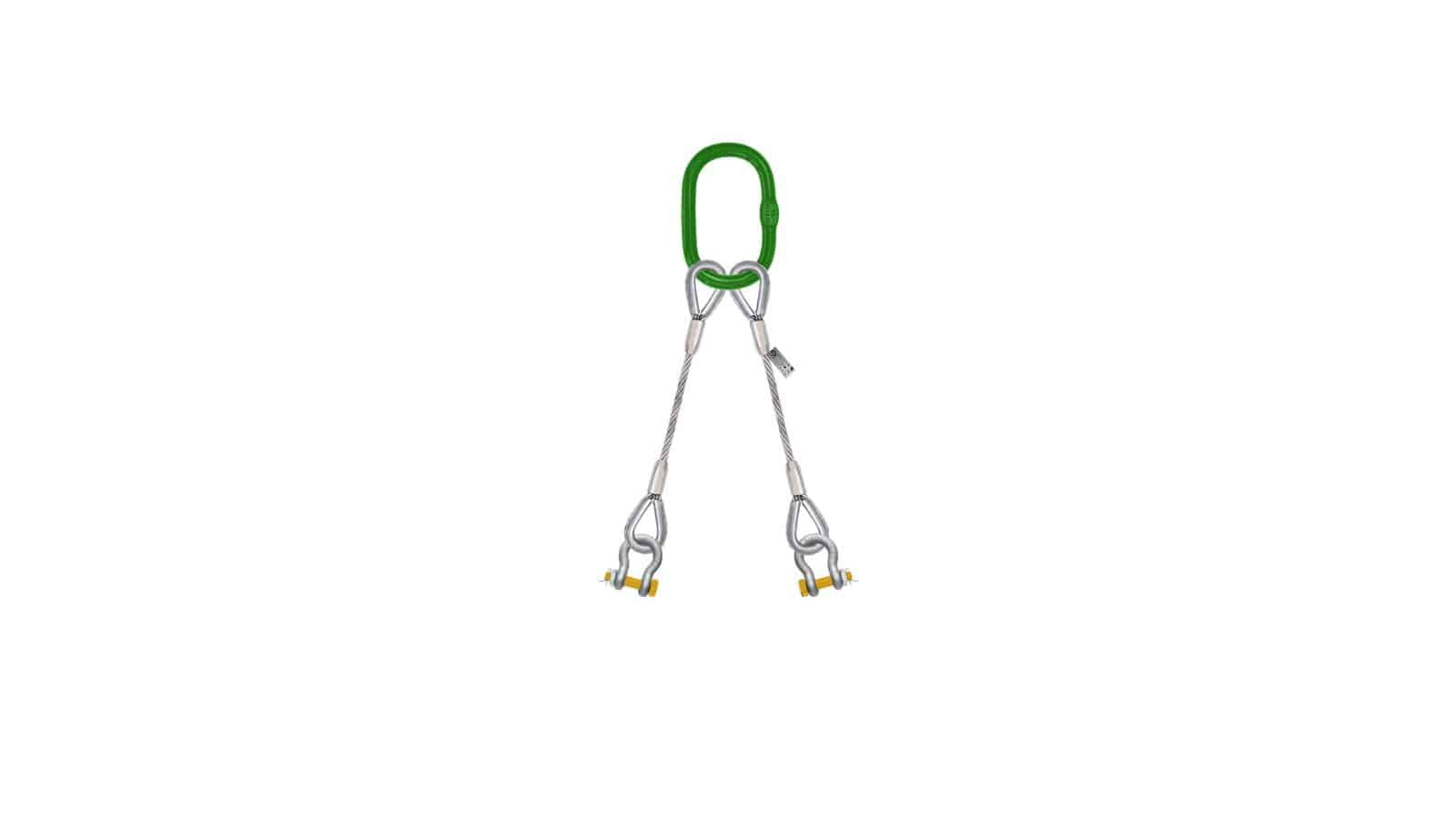

What is a 2-Leg Wire Rope Bridle Sling with Omega Shackle Bolt Type?
This lifting solution features:
- Two wire rope legs connected to a master link at the top.
- Each leg terminates with an Omega (bow) shackle featuring a bolt-type pin.
- Designed to lift loads with two attachment points, it offers balanced lifting and load control.
Omega Shackle (Bolt-Type):
An Omega shackle, also known as a bow shackle, is ideal for multiple sling leg connections. The bolt-type pin ensures maximum safety, security, and long-term use under high-stress conditions. Unlike screw-pin shackles, bolt-type shackles include a nut and cotter pin, minimizing the risk of accidental opening.
Read Also: 2 Leg Wire Rope Bridle Sling with Eye Sling Hooks & Safety Latches for Secure Lifting
Key Components Explained
| Component | Function |
|---|---|
| Wire Rope Legs | Provide tensile strength for lifting heavy loads. Available in different diameters and lengths. |
| Master Link | Connects the sling assembly to the crane or lifting hook. |
| Omega Shackle (Bolt Type) | Attaches securely to the load lifting points; bolt-type ensures maximum retention. |
Safe and Secure (SSTC) leading supplier of custom-built fabricated Steel Wire Rope Slings as per customer specifications and need. “TWO-LEG STEEL WIRE ROPE BRIDLE SLING WITH OMEGA SHAPED SHACKLE NUT & BOLT TYPE”
- Finish: Hot Dip Galvanized, Bright Electro Galvanized, Un-galvanized
- Steel Wire Rope Construction: 6X36, 6X37, 8X19, 7X19, 6X19, 6X25 etc.
- Tensile Grade: 1960 N/mm2 EIPS (Extra Improved Plow Steel), IWRC SC RHRL
- Overall Length should be measured without the Top Master Link Assembly Ring.
- Swaging / Crimping of Sleeves with Carbon Steel Ferrule / Aluminium Ferrule
- End Fittings: Shackles, Hooks, Clamps, Thimble Eyes, Flemish Soft Eyes etc.
Specifications:
| ItemCode(s) | Diameter of Rope | Capacity at different angle (SWL/WLL) | ||
| 0-45 Degree | 45-60 Degree | |||
| mm | Inch | Ton | Ton | |
| SRA-DOSHKBS-06 | 6 | ¼ | 0.7 | 0.5 |
| SRA-DOSHKBS-08 | 8 | 5/16 | 1.15 | 0.82 |
| SRA-DOSHKBS-09 | 9 | 1.4 | 1 | |
| SRA-DOSHKBS-10 | 10 | 3/8 | 1.8 | 1.3 |
| SRA-DOSHKBS-11 | 11 | 2.1 | 1.5 | |
| SRA-DOSHKBS-12 | 12 | 15/32 | 2.5 | 1.8 |
| SRA-DOSHKBS-13 | 13 | ½ | 2.9 | 2.1 |
| SRA-DOSHKBS-14 | 14 | 9/16 | 3.5 | 2.5 |
| SRA-DOSHKBS-16 | 16 | 5/8 | 4.6 | 3.3 |
| SRA-DOSHKBS-18 | 18 | 45/64 | 5.7 | 4.1 |
| SRA-DOSHKBS-19 | 19 | ¾ | 6.4 | 4.6 |
| SRA-DOSHKBS-20 | 20 | 25/32 | 7.1 | 5.1 |
| SRA-DOSHKBS-22 | 22 | 7/8 | 8.7 | 6.2 |
| SRA-DOSHKBS-24 | 24 | 15/16 | 10.3 | 7.4 |
| SRA-DOSHKBS-26 | 26 | 1 | 12 | 8.6 |
| SRA-DOSHKBS-28 | 28 | 1-1/8 | 14 | 10 |
| SRA-DOSHKBS-32 | 32 | 1-1/4 | 18.3 | 13.1 |
| SRA-DOSHKBS-36 | 36 | 1-3/8 | 23.2 | 16.6. |
| SRA-DOSHKBS-38 | 38 | 1-3/8 | 25.9 | 18.5 |
| SRA-DOSHKBS-40 | 40 | 1-7/12 | 28.8 | 20.6 |
| SRA-DOSHKBS-42 | 42 | 1-5/8 | 31.6 | 22.6 |
| SRA-DOSHKBS-44 | 44 | 1-3/4 | 34.7 | 24.8 |
| SRA-DOSHKBS-48 | 48 | 1-7/8 | 41.4 | 29.5 |
| SRA-DOSHKBS-52 | 52 | 2 | 48.7 | 34.8 |
| SRA-DOSHKBS-56 | 56 | 2-1/4 | 56.3 | 40.2 |
| SRA-DOSHKBS-60 | 60 | 2-23/64 | 64.7 | 46.2 |
| SRA-DOSHKBS-64 | 64 | 2-1/2 | 76.7 | 54.8 |
| SRA-DOSHKBS-71 | 71 | 2-3/4 | 93.2 | 66.6 |
| SRA-DOSHKBS-76 | 76 | 3 | 107.1 | 76.5 |
| SRA-DOSHKBS-83 | 83 | 3-1/4 | 125.5 | 89.6 |
| SRA-DOSHKBS-89 | 89 | 3-1/2 | 141.4 | 101 |
| SRA-DOSHKBS-103 | 103 | 4 | 180.6 | 129 |
* Customizable Lengths are available depending on customer requirements in both meters and feet.
* Whereas Standard Lengths: 1,2,3,4,5,6,7,8,9,10,11,12 meter
Key Benefits of the Bolt-Type Omega Shackle
Enhanced Security
The nut-and-cotter pin setup ensures the pin stays firmly in place during extended or vibratory lifts.
Versatile Load Connection
The wide bow shape allows for better movement of slings or hardware within the shackle.
Reusable and Durable
Manufactured from high-grade alloy steel, Omega shackles are reusable, long-lasting, and easy to inspect.
Compliance with Global Standards
All SSTC shackles are rated and tested per ASTM A952, ASME B30.26, and EN13889 standards.
Advantages of 2-Leg Wire Rope Bridle Sling with Bolt-Type Omega Shackles
- Stable Load Distribution
Two lifting points help evenly balance loads—ideal for asymmetrical or offset center-of-gravity items. - Increased Load Capacity
Compared to single-leg or synthetic slings, wire rope bridles can lift heavier loads with improved resistance. - Heat and Abrasion Resistance
Wire rope and bolt-type shackles resist wear, heat, and harsh conditions, ideal for Saudi Arabia’s extreme weather. - Minimal Elongation
Wire rope maintains consistent performance under load with minimal stretch. - Customizable Design
SSTC offers various lengths, diameters, hook types, and configurations tailored to your job.
Safety & Inspection Guidelines
- Daily Visual Inspection
- Check wire ropes for broken strands, kinks, corrosion, or flattening.
- Verify pin retention in bolt-type shackles.
- Monthly or Periodic Audits
- Measure throat openings and shackle pin wear.
- Look for signs of deformation or overload markings.
- Do Not Modify
- Never cut, weld, or rethread lifting components.
- Use Certified Equipment
- SSTC supplies lifting assemblies with full documentation, including load certificates and inspection records.
- Proper Angle Usage
- Avoid sling angles less than 30°, as they increase tension significantly.
Why SSTC is Saudi Arabia’s Leading Supplier
Certified Lifting Gear
Every sling and shackle is tested and certified for rigging excellence and international compliance.
Custom Fabrication
We offer made-to-order bridle slings with your preferred rope length, diameter, and shackle type.
Inspection & Re-Certification
SSTC supports on-site inspections, load testing, and annual certification renewal for lifting equipment.
Fast Delivery Across KSA
Serving Riyadh, Dammam, Jeddah, Yanbu, Jubail, and more—with fast shipping and technical support.
Experienced Technical Team
Our engineers and rigging consultants help you choose the safest configuration for your specific lift.
How to Order
- Send Your Requirements
- Rope diameter & length
- Load weight
- Application (e.g., offshore, construction)
- Get a Free Quote
- Competitive pricing with international-grade materials.
- Receive Documentation
- Load test certificates
- Compliance reports
- Safety usage guide
- Delivery & Support
- Fast, trackable delivery
- Follow-up consultation
Conclusion
The 2-leg wire rope bridle sling with Omega shackle bolt type is a trusted, high-performance lifting tool across Saudi Arabia’s most demanding industries. With increased stability, security, and compliance, it’s a vital component for companies prioritizing safe lifting operations.
Partner with SSTC to ensure your lifting projects meet the highest standards of efficiency, durability, and responsibility.
